CAT-5/RJ-45 Wire Diagrams


  • Switch to Switch or Computer to Computer connections use a cross over cable, one end is a 568A the other is a 568B.
  • Computer to Switch cables use a strait through cable, both ends are 568A or 568B.


RJ-45 Wire Diagram RJ-45 Wire Diagram

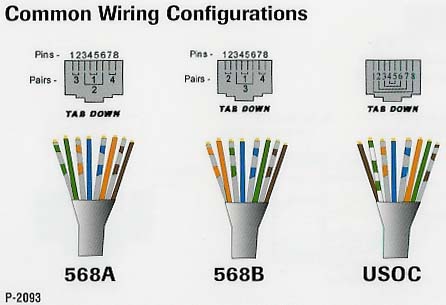

Wire Configurations
